Executive Summary:

Below you will find an example of an output from a simple model Karsten Nohl (http://www.cs.virginia.edu/~kn5f/Mifare.Cryptanalysis.htm ) started as a threat modeling example for the Mifare transit card system.

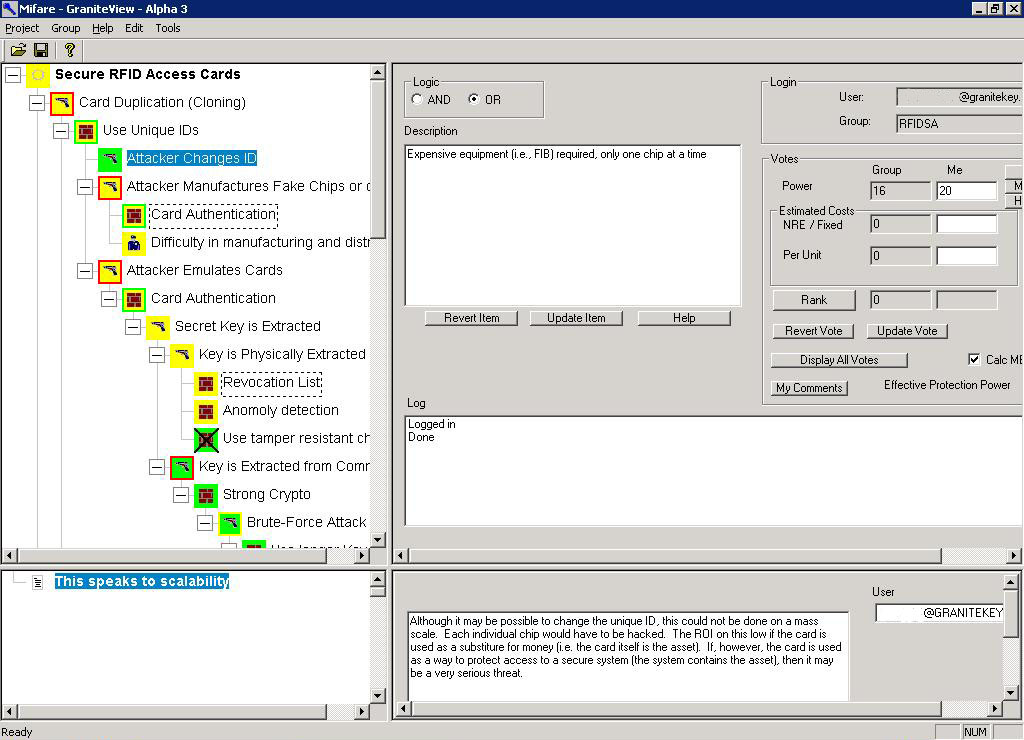

The tool itself is interactive and is intended to allow various stakeholders to attach to the model and build the tree.  Here is a screenshot of the original tool (the output is a slight modification from this original threat model).

The structure of this threat model shall be as follows:

Objective - What The Customer is trying to accomplish.

Threat - What is threatening The Customer's progress, business model, livelihood.

Countermeasure - A countermeasure The Customer can introduce to address threats.

Process - A process The Customer can introduce to address threats.

Disabled - A threat, process, or countermeasure which has been disabled in the model because it is either currently out of scope, or currently not possible, or currently not being considered.

The graphical icons are used to illustrate varying levels of comfort and/or concern based on the power of the Threat, Countermeasure, and Process:

A Threat which is a high likelihood of implementation, is highly scalable, or otherwise cause for great concern would receive a red color coding.  A Threat which is less likely to occur, or may not be particularly feasible would receive a yellow, or even green color coding.  A Countermeasure or Process which would require personnel to adhere to policies and distributed levels of trust of both management and/or personnel would receive a yellow rating.  The intention of this exercise is to serve as a guideline for The Customer in determining what decisions need to be made when implementing and integrating security into the document/asset securing and tracking process.  This should be considered an evolutionary process which leads to improved security through the collaborative examination of the Threat Model.

The top section of this Threat Model is intended to give a summarized overview of the Threat Hierarchy and has been structured to link to portions of the Threat Hierarchy, as well as external links which serve to further illustrate and provide context where appropriate.  Click on hyperlinks as you read through the summary to move to the appropriate section.





Mifare System Threat Hierarchy:

  1. Objective: Secure RFID Access Card System
    The top level objective of this model is to create a RFID access card system which is secure.
    1. Card Duplication (Cloning)
      The access card can be duplicated to mimic an unauthorized card
      1. Use Unique IDs
        Burn in
        1. Attacker Changes ID
          Expensive equipment (i.e., FIB) required, only one chip at a time

          COMMENT : [This speaks to scalability] Although it may be possible to change the unique ID, this could not be done on a mass scale. Each individual chip would have to be hacked. The ROI on this low if the card is used as a substitute for money (i.e. the card itself is the asset). If, however, the card is used as a way to protect access to a secure system (the system contains the asset), then it may be a very serious threat.
        2. Attacker Manufactures Fake Chips Or Cards
          ID can be chosen arbitrarily or left programmable. Only economical at large scale for popular cards (i.e., Mifare cards)
          1. Card Authentication [See LINK Below]
            Cryptographically authenticate card on each read
          2. Difficulty In Manufacturing And Distribution In Volume

        3. Attacker Emulates Cards
          (a) on programmable cards -- Mifare SMX (b) on a Laptop with RF frontend

          COMMENT : Mark Schaeffer [What is Mifare SMX?] You can actually program one of their cards and create a clone?....
          1. Card Authentication
            Cryptographically authenticate card on each read
            1. Secret Key Is Extracted

              1. Key Is Physically Extracted
                Expensive attack; requires physical access, breaks card, and only compromises one card at a time.

                COMMENT : Mike Ahmadi [The extent of this threat depends on type of key.] If the key is symmetric, then this is an extremely scalable and dangerous hack. If using asymmetrical keys, then this is indeed less scalable.

                COMMENT : Mark Schaeffer [What kind of chip is this?] I assumed that this is neither a secure EEPROM or Smart Card type of chip?
                1. Revocation List [See LINK Below]
                  Revoke reader keys that have been compromised. Update revocation list on every tag read. [time delayed measure]

                  COMMENT : Mark Schaeffer [Is there enough space on the card?] The problem with revocation lists is how large can they get and how secure is this list on the card.

                  COMMENT : Mark Schaeffer [Operators must update list] We are relying on operators to update a list (i.e. generate a report when a reader is stolen). Also the assumption is that a reader can't be stolen, keys retrieved and then it is reinstalled over night
                2. Anomaly Detection
                  If the same card is detected in 2 different locations (assuming different key for each card), it will revoke the card's validity in the database

                  COMMENT : Mark Schaeffer [This could be green] Eventually the cloned card would be detected
                3. Use Tamper Resistant Chip
                  expensive measure, not readily available for RFIDs

                  COMMENT : Mark Schaeffer [Removed because too expensive]
              2. Key is Extracted from Communication
                Possible only when underlying cipher is weak (i.e., Mifare Crypto-1)
                1. Strong Crypto
                  Use stronger cryptographic function
                  1. Brute-Force Attack Finds Key


                     COMMENT : Mike Ahmadi [I would give a brute force attack a higher rating] Computers are getting faster and faster. This is a matter of disk space and raw horsepower, and that is getting cheaper every day.

                    COMMENT: Mark Schaeffer [Use NIST recommendations] Although long term this is true, assume they are using NIST recommended crypto??
                    1. Use Longer Key
                      Nothing above 64bits can be brute forced using current computers

                      COMMENT : Mike Ahmadi [Not today, perhaps]
                      1. Time-Memory-Trade-Off Attacks
                        Attacker pre-computes (partial) code book to lookup keys. Large initial cost, but low cost for each compromised tag.

                        COMMENT : Mike Ahmadi [Can you explain this in more detail?]

                        COMMENT : Mark Schaeffer [Yes, More info] I'd be interested in knowing if this is something that is used in practice and has implications across the applied crypto world in general (i.e. does this impact the assumption that anything recommended by NIST is OK)
                        1. Diversify Crypto Function
                          Integrate tag ID into encryption. Do so in a non-linear way. This requires the attacker to pre-compute a different code book for each tag and hence takes away the advantage of time-memory trade-offs.

                          COMMENT : Mike Ahmadi [Explain this as well, please?]
      2. Credit Information Stored In Database

        1. Database Modification [See LINK Below]
          The database of authorized identification information could be modified to contain unauthorized identification information..
        2. Tamper With Turnstile/Reader To Let Invalid Cards In
          This involves not just skimming, but completely destroying the enforcement mechanism.
          1. Inspections, Metal Boxes, Etc.

        3. Reader Access Cached Data
          May allow cloned cards to work for some period (e.g. 24 hours)
    2. Reader Modification
      The card reader could be modified to accept RFID identification which is not authorized.

      COMMENT : Mike Ahmadi [Requires More Effort] It is likely that modifying the reader will require more effort that modifying or cloning the access card.

      COMMENT : Mark Schaeffer [What kind of access does a hacker have?] I would have to see the setup. Offhand, it seems that a hacker breaking into a public transit turnstile is unlikely. If they could get access to change the reader, how much more difficult is it to just disable the whole thing so it lets anybody though.
      1. Skimming Device
        I        n light of the recent proliferation of skimming devices which have been covertly placed in ATM readers, it may be possible for an attacker to add a skimming device to the RFID reading device which could capture information which an attacker could use to create an exploit.

        COMMENT : Mike Ahmadi [I think skimming devices are a huge threat.] Now that you can find skimming devices all over the web (http://www.hackaday.com/2006/05/01/portable-magnetic-card-reader/), I would give this a much higher threat rating
        1. Anti-Tampering Mechanism
          An anti-tampering mechanism could be added to the reader to indicate that the reader has been breached.
          1. Tamper Indicating Seal
            The anti-tampering mechanism could consist of a seal which indicates that the device has been tampered with.
            1. Clone Seal
              The Tamper Indicating Seal could be cloned and a duplicate replacement could be used in its place after breaching the system.
              1. Use a Seal With Difficult To Duplicate Features
                The seal can contain difficult to duplicate features, such as color shifting ink, micro-printing, holograms, etc.
              2. Human Monitoring [See LINK Below]
                A person or persons can have the responsibility of constantly monitoring the reader to make sure nobody unauthorized modifies it.
        2. Human Monitoring
          A person or persons can have the responsibility of constantly monitoring the reader to make sure nobody unauthorized modifies it.
          1. Complacency
            The people monitoring the device become complacent.

            COMMENT : Mike Ahmadi [Dull Jobs Cause Complacency] Despite the best intentions of the people in charge of guarding an asset/system, the brain eventually tires and, within a short time, can no longer see a problem it once could. The mind effectively becomes numb (http://news.bbc.co.uk/2/hi/science/nature/7358863.stm)
          2. Corruption
            The people monitoring the device 'turn a blind eye' due to corruption (lack of ethics).


        3. Reader Authentication, Encryption
          Enable the card to verify the authenticity of the reader. On sucessfull authentication, the authentication data can be used as session key for data encryption.
          1. Attacker Extracts Secret Keys
            A reader is stolen and its secret keys are extracted, thereby enabling the attacker to build a skimming device that is indistinguishable from a legitimate reader.
            1. Tamper-Resistant Hardware
              Encrypt keys in hardware TPM or other security chip; make TPM erase keys when hardware is opened
            2. Revocation List
              Revoke reader keys that have been compromised. Update revocation list on every tag read. [time delayed measure]

              COMMENT : Mark Schaeffer [Is there enough space on the card?] The problem with revocation lists is how large can they get and how secure is this list on the card.

              COMMENT : Mark Schaeffer [Operators must update list] We are relying on operators to update a list (i.e. generate a report when a reader is stolen). Also the assumption is that a reader can't be stolen, keys retrieved and then it is reinstalled over night
              1. Attacker Blocks List Propagation
                If sufficiently many reader are replaced with skimming devices, the attacker can prevent the revocation lists to be updated on the cards.

                COMMENT : Mike Ahmadi [This needs some clarification] Can you explain how this works?
          2. Steal Keys From Card Instead Of Reader

            1. Use Asymmetrical Encryption
              Do NOT use a master key everywhere
      2. Corrupted Path to Database
        Attacker reads or alters communication between reader and database

        COMMENT : Mike Ahmadi [This is a very serious threat.]
        1. Mutual Authentication between Reader and Database
          Use cryptographically-secured channel for communication.
          1. Attacker Extracts Secret Keys [See LINK Above]
            A reader is stolen and its secret keys are extracted, thereby enabling the attacker to build a skimming device that is indistinguishable from a legitimate reader.
    3. Database Modification
      The database of authorized identification information could be modified to contain unauthorized identification information..
    4. Proxy Attack
      Attacker tunnels data between legitimate card and reader; potentially over large distances

       COMMENT : Mark Schaeffer [Please explain]
      1. Distance Bounding Protocol
        Cryptographic real-time protocol that allows reader and tag to measure communication distance
        1. Secret Key is Extracted [See LINK Above]
